Welding system designed for fully automated production of truss girders working directly from wire coils or spools, processing cold or hot rolled wire.
Welding system designed for fully automated production of truss girders working directly from wire coils or spools, processing cold or hot rolled wire.

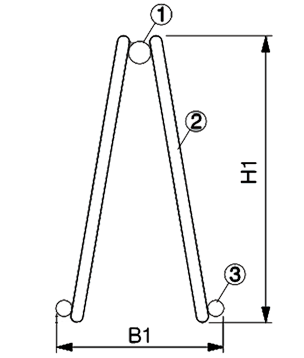

Overall HeightH1mm70 - 350
Bottom WidthB1mm70 - 100

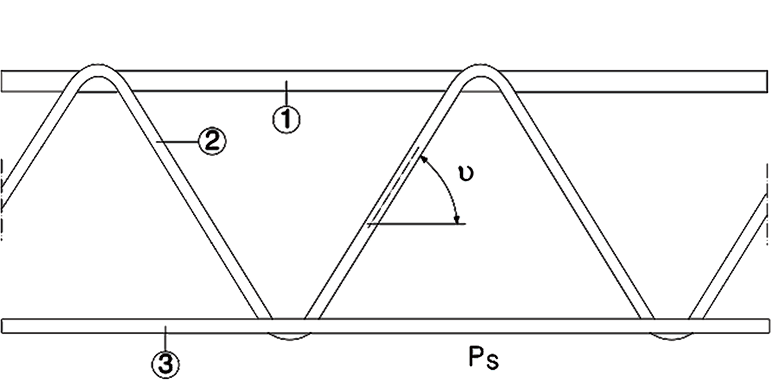

Upper Chord Ø1mm8 - 15
Diagonals Ø2mm6
Lower Chord Ø3mm6 - 12
Pitch of DiagonalsPsmm190 - 210
Max LengthLmm12,000
